Vauxhall Corsa E Pandora Can-Bus Sniffing

Monday, 30 March 2020  |  Admin

More development for the Pandora validator / immobiliser buttons has taken place today on a Vauxhall Corsa E 2016 onwards shape. On this vehicle we managed to find a load of Can-Bus messages which can be added to the Pandora alarm software files. This will mean you will be able to use all the buttons listed below with the Validator feature which can be set up on many vehicles.

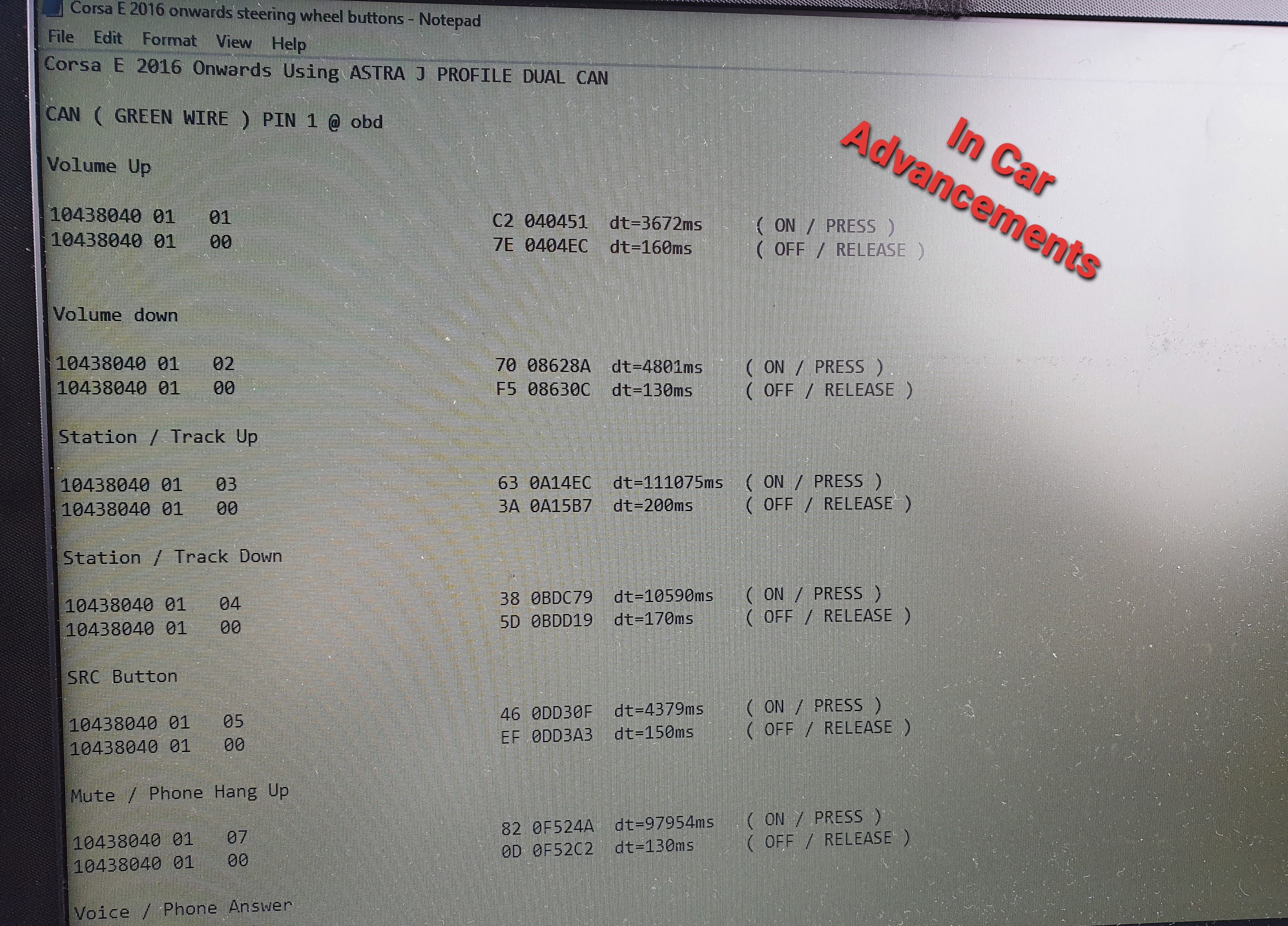

Here is the list of Can-Bus codes we found for each button within the Vauxhall Corsa E Can-Bus network.

Steering Wheel

Volume Up

10438040 01   01                        C2 040451  dt=3672ms     ( ON / PRESS )
10438040 01   00                        7E 0404EC  dt=160ms     ( OFF / RELEASE )


Volume down

10438040 01   02                        70 08628A  dt=4801ms    ( ON / PRESS )
10438040 01   00                        F5 08630C  dt=130ms    ( OFF / RELEASE )

Station / Track Up

10438040 01   03                        63 0A14EC  dt=111075ms    ( ON / PRESS )
10438040 01   00                        3A 0A15B7  dt=200ms    ( OFF / RELEASE )

Station / Track Down

10438040 01   04                        38 0BDC79  dt=10590ms    ( ON / PRESS )
10438040 01   00                        5D 0BDD19  dt=170ms    ( OFF / RELEASE )

SRC Button

10438040 01   05                        46 0DD30F  dt=4379ms    ( ON / PRESS )
10438040 01   00                        EF 0DD3A3  dt=150ms    ( OFF / RELEASE )

Mute / Phone Hang Up

10438040 01   07                        82 0F524A  dt=97954ms    ( ON / PRESS )
10438040 01   00                        0D 0F52C2  dt=130ms    ( OFF / RELEASE )

Voice / Phone Answer

10438040 01   06                        83 106D6A  dt=7211ms    ( ON / PRESS )
10438040 01   00                        A9 106E45  dt=220ms    ( OFF / RELEASE )

DASH CENTER

Eco Button

10254040 07   00 00 00 00 00 00 00      89 15B719  dt=10192ms    ( Eco Driving ON )
10254040 07   01 00 00 00 00 00 00      77 15BDEC  dt=1750ms    ( Eco Driving OFF )

These just look like random nunbers to most people but if you look at each Can-Bus message you will see the code changes slightly when the button is pressed and changes again once the button is released.  This is how every Can-Bus immobiliser on the market works by simply reading these button presses. Once these codes have been added to the can-bus file it will allow the customer to set up a pin code via these buttons and the engine won't start unless this unique pin number is entered.
